DIN-096CPC-SR1-TG30
CONN DIN PLUG 96POS PCB RA GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More

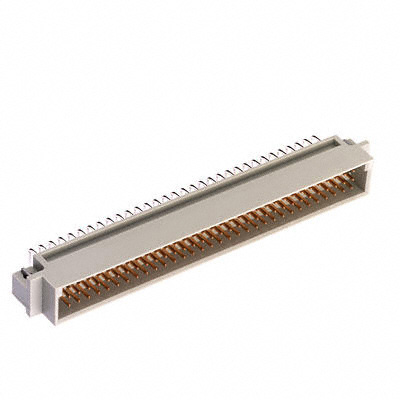

The 3M DIN 41612 connector, part number DIN-096CPC-SR1-TG30, is a 96-position, 3-row DIN 41612 Type C plug with male pins. Featuring a right-angle, through-hole mounting style, this component utilizes gold plating with a thickness of 30.0µin (0.76µm) for reliable connectivity. The 0.100" (2.54mm) pitch ensures precise board placement. This connector is suitable for applications in telecommunications, industrial automation, and test and measurement equipment, where robust and high-density interconnects are critical. The connector is supplied in bulk packaging.
Additional Information
Series: DIN 41612RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | C |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Rows | 3 |
