DIN-064RSB-SR1-HM
CONN DIN RCPT 96POS PCB RA GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More

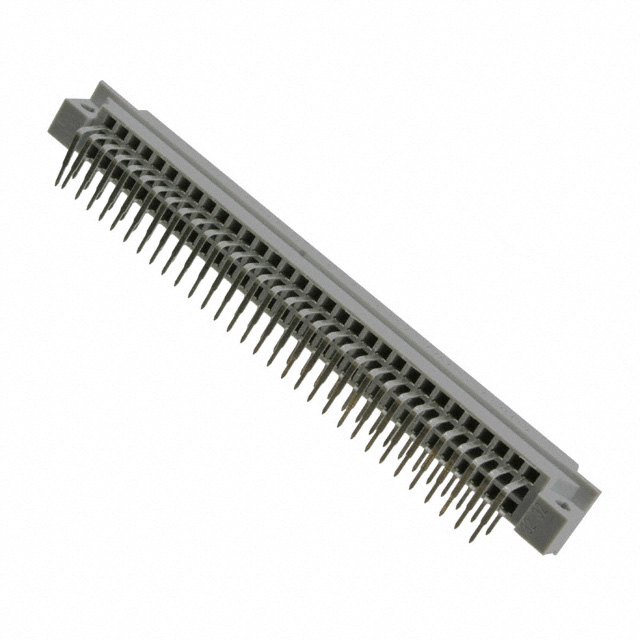

3M DIN 41612 Receptacle, DIN-064RSB-SR1-HM. This 96-position, 3-row right-angle PCB connector features female sockets with a gold contact finish, 3.00µin thick, for enhanced conductivity and durability. Designed for through-hole mounting, it offers a 0.100" (2.54mm) pitch. The DIN-064RSB-SR1-HM accommodates 64 loaded positions, adhering to the DIN 41612 Style R standard. Its solder termination ensures a robust connection. This component is widely employed in telecommunications, industrial automation, and data processing applications where reliable, high-density interconnects are critical. Supplied in bulk packaging.
Additional Information
Series: DIN 41612RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | R |
| Number of Positions Loaded | 64 |
| Termination | Solder |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Number of Rows | 3 |
