DIN-064CSB-PSL-HM
CONN DIN RCPT 96POS PCB GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More

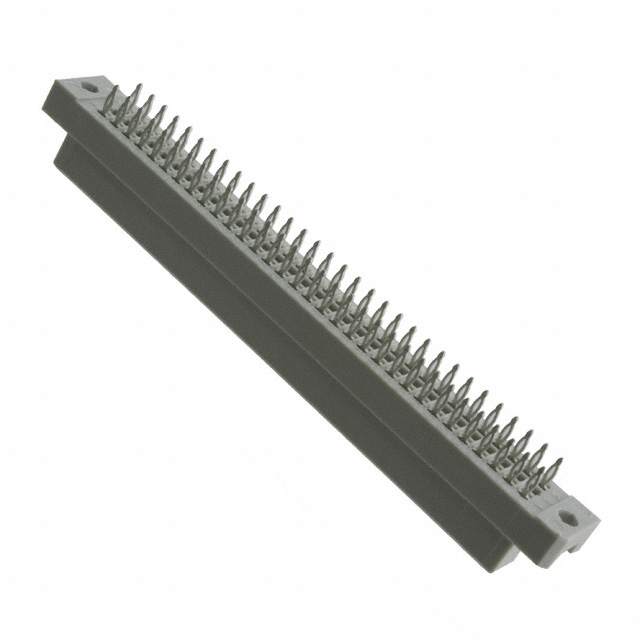

The 3M DIN 41612 DIN RCPT 96POS PCB GOLD, part number DIN-064CSB-PSL-HM, is a 3-row, 96-position receptacle connector designed for PCB mounting. It features gold-plated female sockets with a contact finish thickness of 3.00µin (0.076µm) for enhanced conductivity and durability. This connector utilizes a 0.100" (2.54mm) pitch and a Type C style, with a through-hole mounting configuration. The termination method is press-fit, facilitating robust mechanical and electrical connections. While specified with 96 positions, 64 positions are loaded. This component is commonly employed in industrial automation, telecommunications infrastructure, and general electronic equipment where reliable, high-density interconnects are critical.
Additional Information
Series: DIN 41612RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | C |
| Number of Positions Loaded | 64 |
| Termination | Press-Fit |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Number of Rows | 3 |
