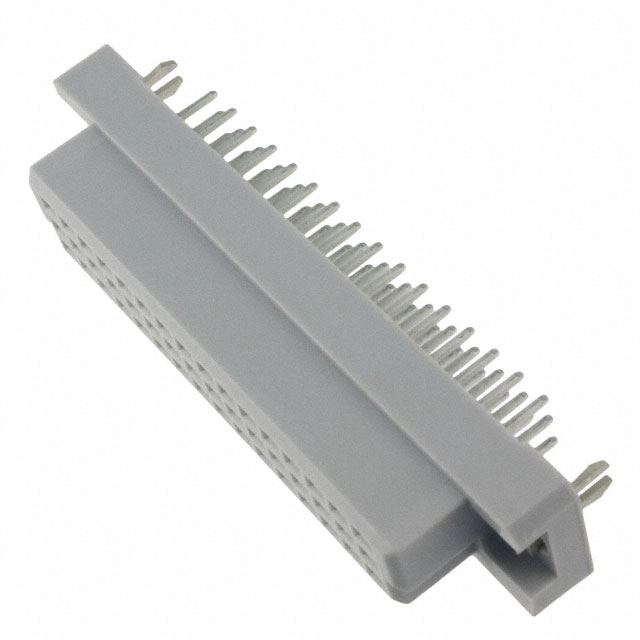

DIN-048CSC-R1L-HM
CONN DIN RCPT 48POS PCB GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More
The 3M DIN 41612 DIN RCPT 48POS PCB GOLD, part number DIN-048CSC-R1L-HM, is a Type C receptacle connector featuring 48 gold-plated female sockets. This component is designed for through-hole mounting with a pitch of 0.100" (2.54mm). It offers a robust connection with a contact finish thickness of 3.00µin (0.076µm) for enhanced conductivity and durability. The connector includes a board lock feature for secure PCB attachment. With three rows and all 48 positions loaded, it adheres to the C/2 (1/2 C) style of the DIN 41612 standard. This high-density connector is suitable for applications in telecommunications, industrial automation, and computing. The product is supplied in bulk packaging.
Additional Information
Series: DIN 41612RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Pitch | 0.100"" (2.54mm) |
| Style | C/2 (1/2 C) |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Number of Rows | 3 |
