DIN-048CSC-PSL-HM
CONN DIN RCPT 48POS PCB GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More

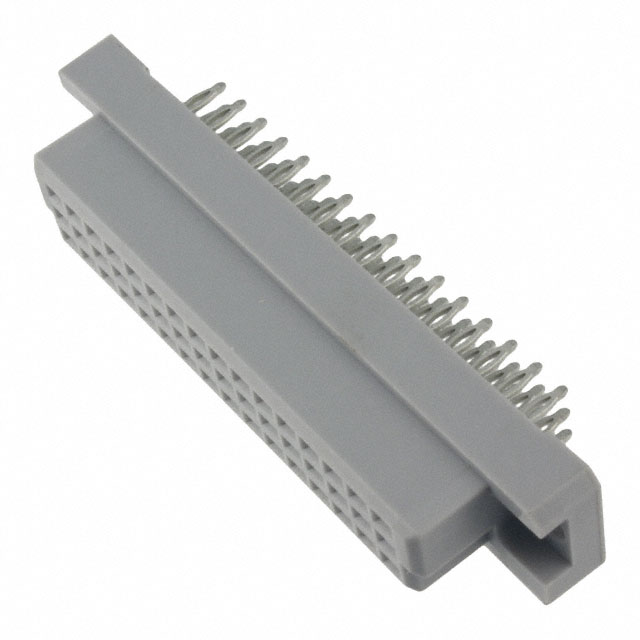

3M DIN 41612 DIN RCPT 48POS PCB GOLD, part number DIN-048CSC-PSL-HM, is a 48-position receptacle with female sockets designed for PCB mounting. This component features gold-plated contacts with a thickness of 3.00µin (0.076µm) for reliable connectivity. The DIN 41612 standard compliant connector offers a 0.100" (2.54mm) pitch and a C/2 (1/2 C) style configuration across three rows, with all 48 positions loaded. Mounting is achieved via a through-hole termination method. This component is suitable for applications within the telecommunications, industrial automation, and data processing industries. It is supplied in bulk packaging.
Additional Information
Series: DIN 41612RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Pitch | 0.100"" (2.54mm) |
| Style | C/2 (1/2 C) |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Number of Rows | 3 |
