62C64-1100EF
CONN DIN RCPT 96POS IN-LINE GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More
3M 62C64-1100EF is a 96-position DIN 41612 Eurosocket series receptacle with female sockets. This free-hanging (in-line) connector features a gold contact finish with a thickness of 20.0µin (0.51µm) for reliable signal integrity. Designed with a C style and a pitch of 0.100" (2.54mm), it supports 64 loaded positions across three rows. The IDC termination method facilitates efficient wiring. This component is commonly utilized in industrial automation, telecommunications, and data processing equipment.
Additional Information
Series: Eurosocket, 62CXXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | C |
| Number of Positions Loaded | 64 |
| Termination | IDC |
| Level, Class | 2 |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Number of Rows | 3 |
Request a Quote
Clients Also Buy

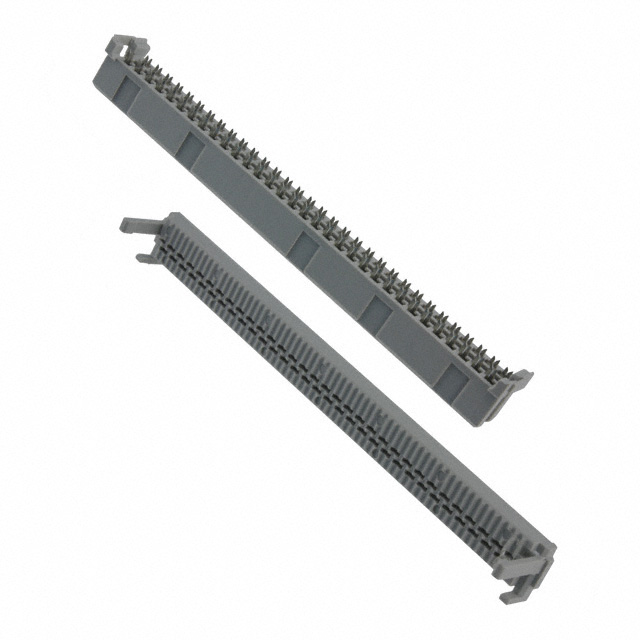

62C64-1100EC
CONN DIN RCPT 96POS IN-LINE GOLD

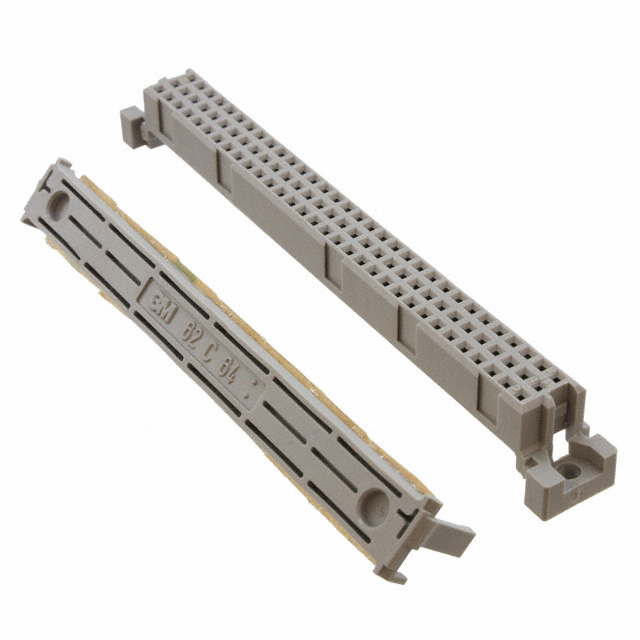

62C64-1101EC
