62B64-1001EC
CONN DIN RCPT 64POS PNL MNT GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More

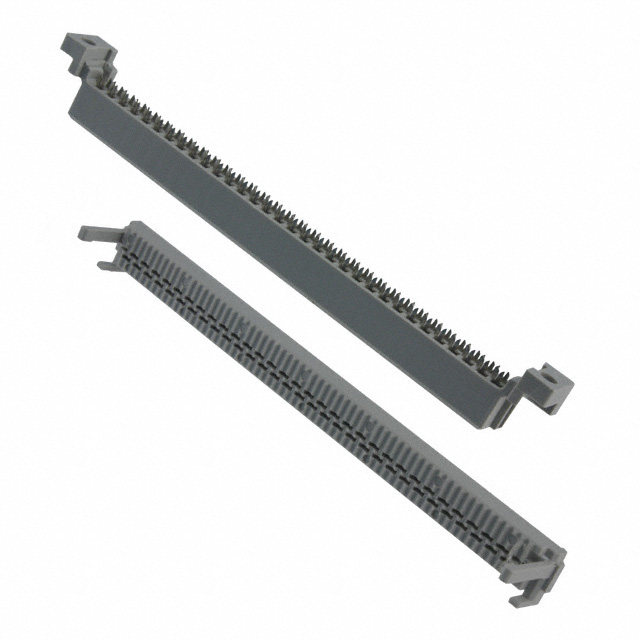

The 3M 62B64-1001EC is a 64-position DIN 41612 Type B receptacle connector. Designed for robust panel mounting, this female socket connector features gold plated contacts with a thickness of 30.0µin (0.76µm) for enhanced conductivity and corrosion resistance. The connector utilizes IDC termination for efficient wire management and a 0.100" (2.54mm) pitch. It is suitable for applications requiring high-density interconnects, commonly found in telecommunications, industrial automation, and data processing equipment. This component is supplied in bulk packaging.
Additional Information
Series: 62B64RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Panel Mount |
| Number of Positions | 64 |
| Pitch | 0.100"" (2.54mm) |
| Style | B |
| Number of Positions Loaded | All |
| Termination | IDC |
| Level, Class | 1 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Rows | 2 |
