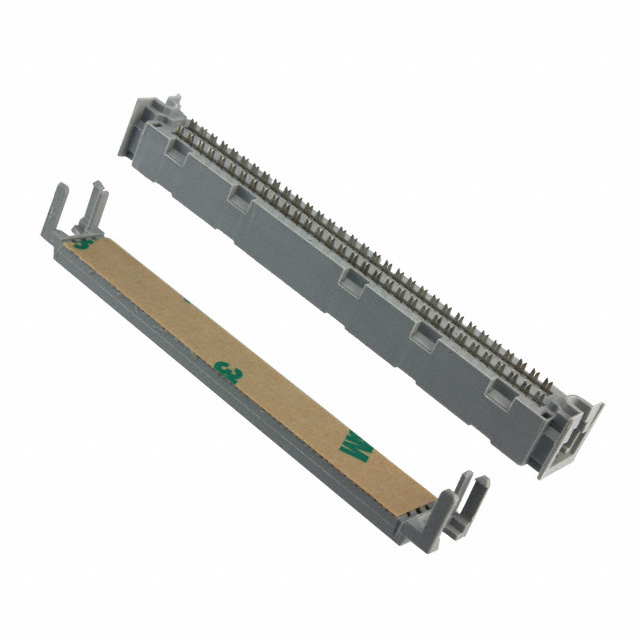

3695-0000
CONN DIN PLUG 96POS IN-LINE GOLDManufacturer: 3M
Categories: DIN 41612
Quality Control: Learn More
3M 3695 Series DIN 41612 connector, part number 3695-0000. This 96-position, male plug features gold-plated contacts with a 30.0µin (0.76µm) finish, designed for in-line, free-hanging mounting. The connector utilizes IDC termination for efficient wire connection and offers a 3-row configuration with a 0.100" (2.54mm) pitch. It supports 96 positions, with 64 positions loaded, and is classified as Level 1. This component is suitable for applications in telecommunications, industrial automation, and test and measurement equipment, where reliable high-density connections are critical. The 3M 3695-0000 is supplied in bulk packaging.
Additional Information
Series: 3695RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Feed Through |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | C |
| Number of Positions Loaded | 64 |
| Termination | IDC |
| Level, Class | 1 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Rows | 3 |
