88537-6000
37P D-SUB STRAIGHT PLUG CONNECTOManufacturer: 3M
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

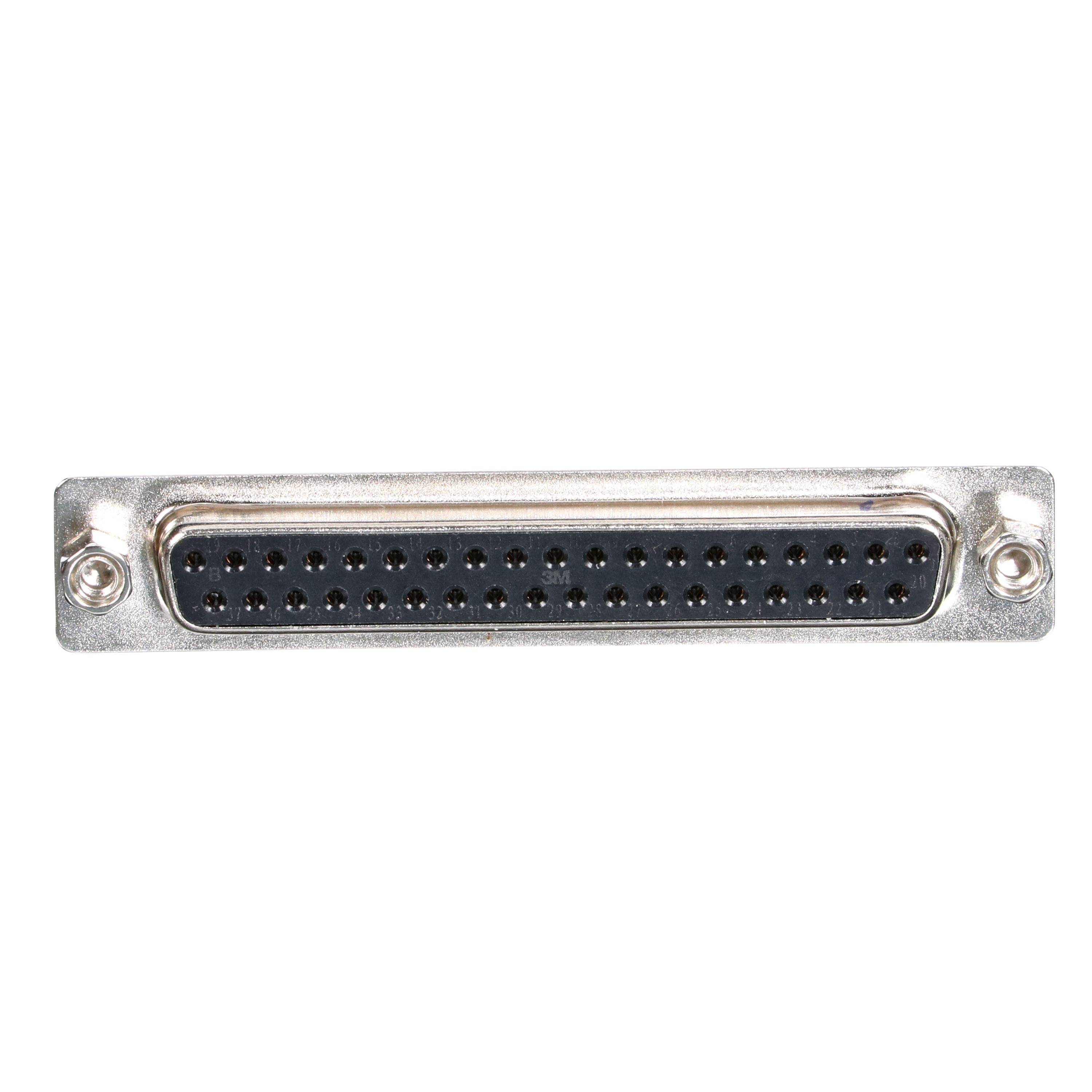

37 Position D-Sub Receptacle, Female Sockets Connector
Additional Information
Series: 885RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Box |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | - |
| Shell Size, Connector Layout | 4 (DC, C) |
| Backset Spacing | - |
| Primary Material | - |
Request a Quote
