12226-5150-00PL
CONN RCPT 26POS R/A SOLDERManufacturer: 3M
Categories: Centronics Connectors
Quality Control: Learn More

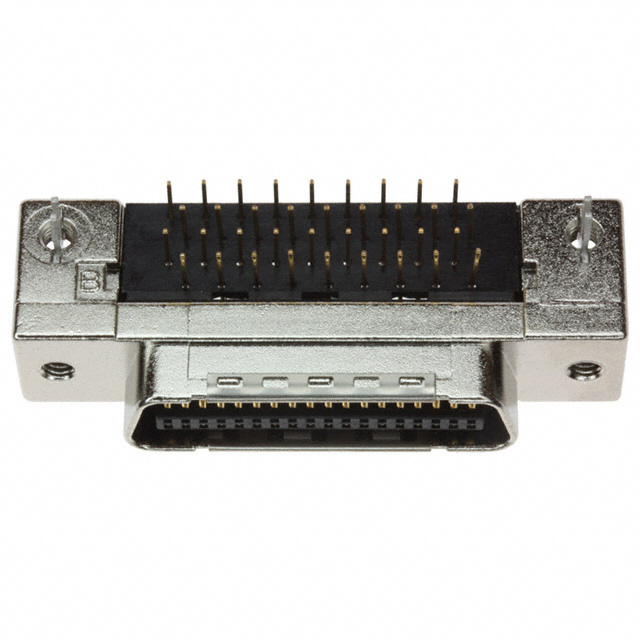

26 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
Additional Information
Series: 122, Shrunk D Ribbon (SDR)RoHS Status: Request inventory verificationManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Shielded |
| Packaging | Box |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Positions | 26 |
| Type | - |
| Flange Feature | Mating Side (M2) |
| Termination | Solder |
| Connector Style | Outer Shroud Contacts |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Number of Rows | 2 |
