10136-3000VE
CONN PLUG 36POS STR SLDR CUPManufacturer: 3M
Categories: Centronics Connectors
Quality Control: Learn More
The 3M 10136-3000VE, part of the 3M 101 Series Mini D Ribbon (MDR) connector family, is a 36-position plug designed for free-hanging, in-line applications. This shielded connector features a center strip contact configuration with robust solder cup terminations for reliable connections. The gold contact finish, with a thickness of 20.0µin (0.51µm), ensures excellent conductivity and corrosion resistance, crucial for demanding applications. Its construction is well-suited for use in industrial automation, data acquisition systems, and telecommunications infrastructure where robust and dependable interconnects are paramount. This component is supplied in bulk packaging.
Additional Information
Series: 101, Mini D Ribbon (MDR)RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Shielded |
| Packaging | Bulk |
| Connector Type | Plug |
| Contact Finish | Gold |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 36 |
| Type | - |
| Flange Feature | - |
| Termination | Solder Cup |
| Connector Style | Center Strip Contacts |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

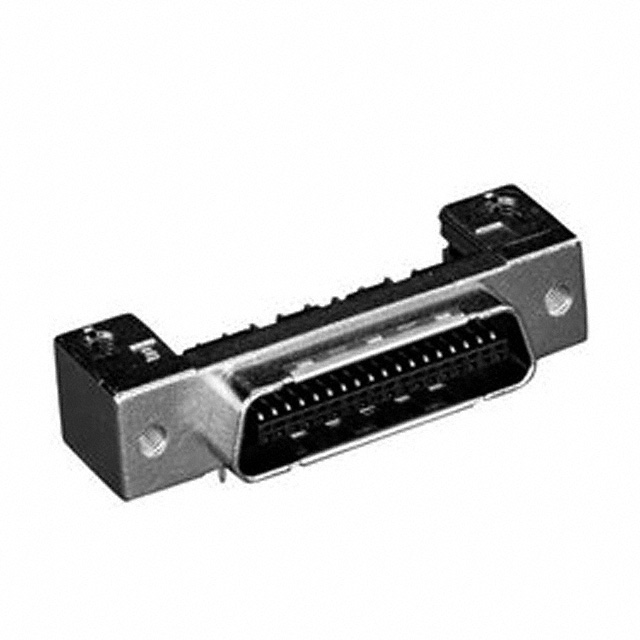

10126-5212PC
CONN BTB PLUG 26POS R/A SOLDER
10136-52B2PC
CONN PLUG 36POS R/A SOLDER

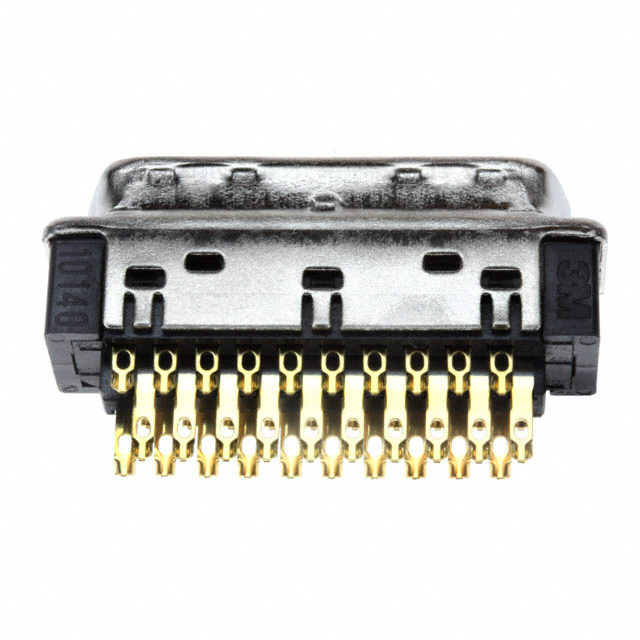

10140-3000PE
