Zynq-7000

Zynq-7000 is a unique combination of advanced microprocessors and field-programmable gate arrays. This new technology has transformed the field of embedded systems development, enabling developers to implement mixed-signal, high-performance applications in a cost-effective manner.

At its core, Zynq-7000 is a system-on-chip (SoC) technology that combines an ARM-based processing system with an FPGA fabric. This combination enables developers to create a wide range of applications, including video processing, software-defined radio, and automotive driver assistance systems.

Zynq-7000 also comes with a wide range of advanced peripherals and interfaces, including memory controllers, Ethernet interfaces, and USB controllers. These features make it an ideal platform for developing complex, high-performance applications.

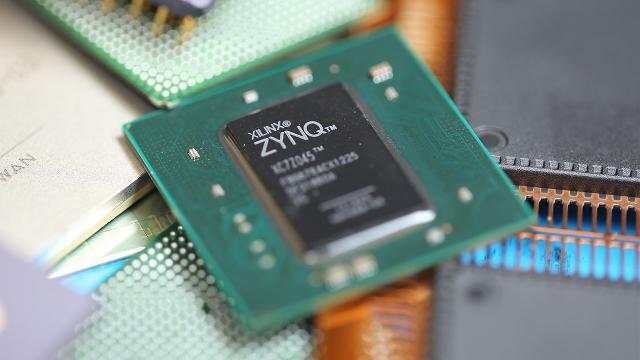

Zynq 7000 SoC

Xilinx Zynq-7000. (Image Source: Xilinx)

Features and Architecture

The Zynq-7000 series includes a range of devices with varying numbers of logic cells and I/O pins, as well as different combinations of processor cores and other peripherals. The core of the device is the FPGA fabric, which can be programmed to implement custom digital logic circuits using a hardware description language (HDL) such as Verilog or VHDL. The FPGA can also be configured to interface with a variety of standard and custom I/O interfaces, including high-speed serial interfaces such as USB, SATA, PCIe, and Gigabit Ethernet.

The ARM Cortex-A9 processor provides a dual-core 32-bit RISC architecture, with up to 1 GHz clock frequency and integrated memory controllers for DDR3 and DDR2 SDRAM. The processor can run a variety of operating systems, including Linux, Android, and other RTOS (Real-Time Operating Systems). The Zynq-7000 also includes a range of other peripherals, such as ADCs, DACs, PWM controllers, and timers, as well as specialized processing blocks for video and audio.

One of the most significant advantages of the Zynq-7000 is the integration of the FPGA and the ARM processor. This integration allows for a significant amount of flexibility in system design. The FPGA fabric can be used to implement custom logic functions or interfaces, while the ARM processor can be used to run software applications, communicate with other devices, or perform other tasks. The integration of the two components also provides a high degree of performance and power efficiency compared to using separate components.

Applications

The Zynq-7000 is an ideal platform for a wide range of embedded system applications, including:

  1. Industrial Control: The Zynq-7000 is a versatile and powerful system-on-chip (SoC) that can be employed in various control applications in industrial settings. It offers a unique combination of a programmable logic fabric (FPGA) and a high-performance ARM Cortex-A9 processor on a single chip, enabling designers to create customized and efficient solutions. One of the main advantages of the Zynq-7000 is its ability to perform motor control and process automation tasks, thanks to its real-time capabilities and flexible I/O interfaces.

    The FPGA fabric provides a highly programmable hardware platform that can implement custom control algorithms or interfaces for different types of motors, sensors, or actuators. This means that designers can tailor the FPGA to suit specific requirements, such as high-speed data acquisition or real-time control, and modify it as necessary throughout the project lifecycle. The FPGA fabric can be used to implement advanced signal processing techniques, such as filtering, noise reduction, or synchronization, to enhance the performance of the control system.

    The ARM Cortex-A9 processor of the Zynq-7000 can run software applications that interact with other devices or systems, providing a high-level interface for the control system. The ARM processor can be programmed with a wide range of programming languages, such as C/C++, Python, or Java, and can communicate with other devices using standard communication protocols, such as Ethernet, CAN, or USB. This enables designers to develop complex control systems that can monitor, control, and communicate with other systems, such as PLCs, HMIs, or SCADA.

  2. Communications: The Zynq-7000 SoC is a highly capable platform for networking and telecommunications applications. With its high-speed serial interfaces, including Gigabit Ethernet, USB, and PCIe, it can handle large amounts of data with low latency, making it ideal for high-speed data communication. Additionally, the integrated Ethernet controllers provide a reliable and efficient means of connecting the device to a network, enabling it to communicate with other devices or systems.

    One of the Zynq-7000’s key strengths in networking and telecommunications applications is its FPGA fabric, which can be programmed to create custom communication protocols or interfaces. This enables designers to implement Ethernet switching or routing functionality and create bespoke interfaces for specific communication standards, allowing the Zynq-7000 to adapt to various networking and telecommunications applications, from low-level data processing to high-level control and management.

    The ARM processor of the Zynq-7000 can be used to run software applications that handle data processing or communication tasks, providing a high-level interface for the device. The ARM processor can be programmed with a wide range of programming languages, including C/C++, Python, and Java, and can communicate with other devices using standard communication protocols. This makes it possible to develop custom applications that can perform tasks such as packet processing, data analysis, or network management.

  3. Automotive: The Zynq-7000 SoC is fit for a wide range of automotive applications, including infotainment systems, engine control units, and advanced driver assistance systems (ADAS). The FPGA fabric of the Zynq-7000 can be programmed to implement custom control algorithms or interfaces tailored to the specific requirements of each application. For instance, the FPGA fabric can be utilized to enable real-time data processing, compute-intensive image processing, and machine learning algorithms that are essential for many ADAS applications.

    The ARM processor of the Zynq-7000 can run software applications that interact with sensors, cameras, or other devices, providing a high-level interface for these systems. The ARM processor can be programmed with various programming languages such as C/C++, Python, and Java, which allows the development of custom software applications that can communicate with these sensors, cameras, or other devices seamlessly.

    For infotainment systems, the Zynq-7000 can support multiple displays and connectivity options such as Bluetooth, Wi-Fi, and USB to enhance the user experience. The Zynq-7000 also offers hardware-accelerated graphics processing units (GPUs) that can be used for rendering high-quality 3D graphics, enabling stunning visual displays on the infotainment system.

  4. Aerospace and Defense: The Zynq-7000 is a versatile system-on-chip (SoC) device that has found significant application in the aerospace and defense industries. Its high-performance capabilities make it well-suited for use in avionics, radar, and electronic warfare systems, among other applications.

    One of the key features of the Zynq-7000 that makes it particularly useful in these contexts is its programmable logic fabric, which is based on field-programmable gate array (FPGA) technology. This fabric can be used to implement custom signal processing or control functions, allowing system designers to tailor the device to meet specific requirements. For example, the FPGA fabric can be used to implement digital signal processing (DSP) algorithms, such as filtering or modulation/demodulation, that are critical to the operation of many aerospace and defense systems.

    In addition to the FPGA fabric, the Zynq-7000 also includes an ARM processor that can run software applications. This opens up a wide range of possibilities for interacting with other systems or devices. For example, the ARM processor could be used to control the flow of data between the Zynq-7000 and other components of a larger system, such as a communications network or an embedded sensor array.

CapabilitiesĀ

  1. Ability to run multiple operating systems simultaneously: The Zynq-7000 is capable of running multiple operating systems at the same time, such as Linux, Android, and real-time operating systems (RTOS). This ability to run multiple operating systems simultaneously makes the Zynq-7000 a highly versatile platform for a wide range of applications.

  2. Rich set of peripherals including Ethernet, USB, CAN, SPI, I2C, and UART: The Zynq-7000 has a rich set of peripherals that includes Ethernet, USB, CAN, SPI, I2C, and UART, among others. These peripherals make it easy to interface with a wide range of external devices and sensors, enabling the Zynq-7000 to be used in a variety of applications.

  3. Programmable logic fabric based on Xilinx’s FPGA technology: The Zynq-7000’s programmable logic fabric is based on Xilinx’s field-programmable gate array (FPGA) technology. This allows users to implement custom hardware accelerators and digital signal processing (DSP) algorithms, making the Zynq-7000 an excellent platform for high-performance computing applications that require real-time processing of large amounts of data.

  4. Ability to implement custom hardware accelerators and digital signal processing algorithms: The programmable logic fabric in the Zynq-7000 allows users to implement custom hardware accelerators and digital signal processing (DSP) algorithms. This makes it possible to offload compute-intensive tasks from the processor, resulting in faster and more efficient processing.

  5. Versatility for a wide range of applications, including high-performance computing and real-time processing: The Zynq-7000’s versatility makes it suitable for a wide range of applications, including high-performance computing and real-time processing. Its ability to run multiple operating systems simultaneously and implement custom hardware accelerators and DSP algorithms makes it a flexible platform that can be adapted to meet the specific needs of a given application.

  6. Ability to interface with specialized hardware through custom interfaces and protocols: The programmable logic fabric in the Zynq-7000 allows users to implement custom interfaces and protocols, making it possible to interface with specialized hardware that may not be supported by the built-in peripherals. This capability gives the Zynq-7000 even greater flexibility in terms of the types of applications it can be used for.

  7. Dual-core ARM Cortex-A9 processor for processing power and flexibility: The Zynq-7000 features a dual-core ARM Cortex-A9 processor, providing processing power and flexibility. The Cortex-A9 is a widely used processor architecture that is well-supported by software and toolchains, making it easy to develop software for the Zynq-7000.

  8. Support for operating systems such as Linux, Android, and RTOS: The Zynq-7000 supports a variety of operating systems, including Linux, Android, and real-time operating systems (RTOS). This support makes it easy to develop software for the Zynq-7000 and integrate it with existing software systems.

Conclusion

The Zynq-7000 is a highly capable platform that offers a unique combination of an FPGA fabric and an ARM processor, making it an ideal choice for industrial control applications. The FPGA fabric provides a high degree of flexibility and customization in the design of control systems, allowing for the implementation of custom control algorithms and interfaces tailored to specific requirements. The ARM processor offers the ability to run software applications that can interact with other devices or systems, such as HMIs and SCADA systems, and can also handle data processing and communication tasks.

The Zynq-7000’s ability to combine both software and hardware-based solutions makes it a powerful tool in industrial control applications. Custom control algorithms can be implemented in the FPGA fabric, while the ARM processor handles communication and data logging tasks. This combination results in more efficient and effective control systems than traditional controllers based solely on software. Additionally, the Zynq-7000’s range of I/O interfaces and processing blocks makes it a versatile platform that can be adapted to a variety of industrial control applications, such as motor control, process automation, and other control systems.

Overall, the Zynq-7000 offers a unique and powerful platform for industrial control applications, providing a high degree of flexibility, customization, and performance. Its combination of hardware and software-based solutions makes it a valuable tool for system designers and engineers, enabling the creation of more efficient and effective control systems for a range of industrial applications.
