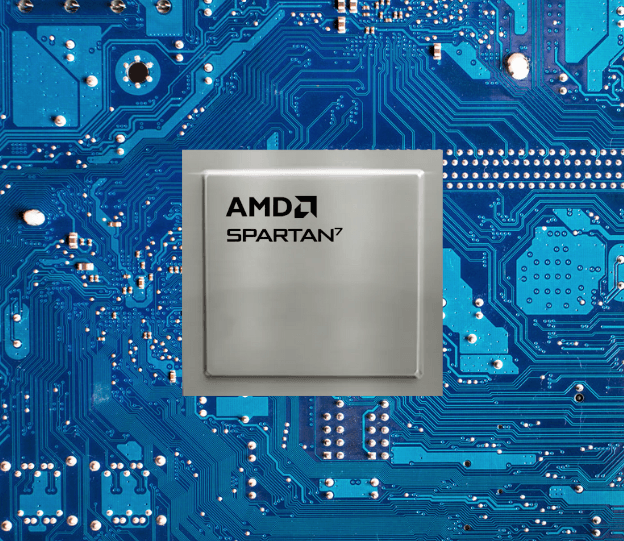

In the world of digital design, flexibility and performance are paramount. The Spartan 7 FPGA from AMD (formerly Xilinx) is a robust solution for engineers seeking to push the boundaries of their applications. This article delves into the functionality, performance, uses, and benefits of the Spartan 7 FPGA.
Functionality: A Versatile Architecture
The Spartan 7 FPGA is designed to meet the diverse needs of modern embedded applications. Its architecture features a combination of logic cells, DSP slices, and memory blocks that provides a powerful platform for implementing complex algorithms. The use of a 28nm process technology allows for a compact, power-efficient design without compromising performance.
One of the standout features of the Spartan 7 FPGA is its support for multiple I/O standards. This flexibility allows engineers to connect the FPGA to various peripherals and interfaces, so it’s suitable for a wide array of applications. Additionally, the integrated clock management and high-speed serial transceivers enable seamless communication between components.
The Spartan 7 FPGA also incorporates advanced power management features. Designers can utilize dynamic power management techniques to optimize power consumption for battery-operated and embedded applications.
Efficiency and Performance
When it comes to performance, the Spartan 7 FPGA excels in delivering a balance of speed and efficiency. The architecture is designed to handle the complex computations required for signal processing and data-intensive tasks.
The integration of DSP slices within the Spartan 7 FPGA enable efficient arithmetic operations — such as multiplication and accumulation — which are essential for applications in audio, video, and communications. The FPGA’s reconfigurable nature allows designers to tailor the architecture for specific tasks and ensure maximum performance for their unique requirements.
Additionally, the Spartan 7 FPGA supports the AMD MicroBlaze processor technology, a soft processor core that provides a flexible processing solution. MicroBlaze can be implemented directly within the FPGA fabric, allowing for customizable processing capabilities alongside the FPGA’s programmable logic. This integration means designers can run complex control algorithms or handle data processing tasks without needing external processors, which streamlines designs and reduces latency.
The support for various memory interfaces, including DDR3 and DDR4, further enhances the performance capabilities of the Spartan 7 FPGA. This support is especially critical for image processing and machine learning applications, because it enables high-speed data transfers and handles large datasets efficiently. The combination of the Spartan 7’s architecture with MicroBlaze technology empowers engineers to create highly customized and optimized performance solutions.
