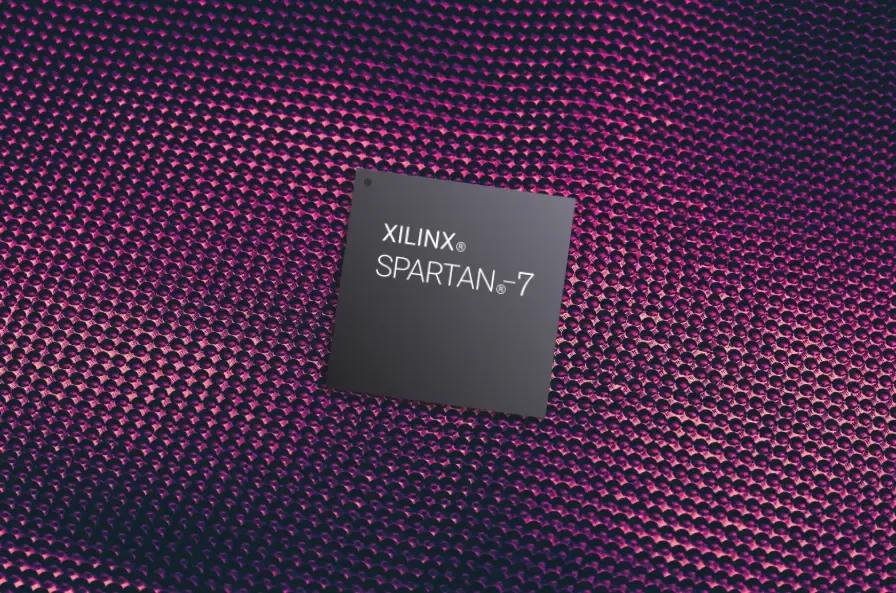

Field Programmable Gate Arrays (FPGAs) are a core building block of modern digital systems, offering high flexibility, strong performance, and cost efficiency across many applications. Traditionally, FPGA development has been complex, limiting adoption to highly specialized engineers. This barrier has been reduced with the introduction of Xilinx Spartan 7 FPGAs, which are designed to simplify development while maintaining reliable performance. As a result, Spartan 7 devices are enabling new designers to enter FPGA development more easily and accelerate innovation.

Learn More: FPGAs

The Spartan 7 Advantage

Xilinx Spartan 7 FPGAs include advanced built-in features that balance performance and power efficiency. They are the first FPGAs in their class to use a one-transistor thin-oxide (1T-1C) memory cell architecture, enabling high-performance operation with significantly reduced power consumption. With typical power usage of approximately 95 milliwatts (mW), Spartan 7 devices are well suited for battery-powered and low-power embedded applications.

The Spartan 7 series also supports a broad set of high-speed and standard interfaces, including PCI Express (PCIe), Gigabit Ethernet (GbE), and Serializer/Deserializer (SerDes). These built-in interfaces simplify system integration, allowing designers to easily connect Spartan 7 FPGAs to sensors, System-on-a-Chip (SoC) devices, and other FPGA platforms.

Spartan 7 Key Features

Xilinx Spartan 7 FPGAs are designed to deliver a balanced combination of high performance, low power efficiency, and flexible connectivity for embedded and industrial systems. Their architecture supports demanding workloads while remaining accessible to a broad range of designers.

High-Performance Processing

Spartan 7 FPGAs provide strong digital signal processing performance, delivering up to 1.6 TeraMACs, or trillion multiply-accumulate operations per second. This processing capability supports advanced applications such as real-time video and audio processing, wireless communications, and high-performance computing. In addition to DSP throughput, Spartan 7 devices support up to 2.2 million logic cells, enabling designers to implement complex digital circuits and highly customized processing pipelines without performance bottlenecks.

Low Power Consumption

Spartan 7 FPGAs are engineered for energy efficiency and can consume up to 50 percent less power than comparable devices in the same class. This reduction is achieved through a combination of advanced silicon design and intelligent power optimization. Built on a 28-nanometer process technology, Spartan 7 devices reduce power consumption while maintaining reliable performance. Integrated features such as dynamic power gating, clock gating, and voltage scaling allow the FPGA to adjust energy usage in real time based on workload demands, making it well suited for battery-powered and power-constrained environments.

High-Speed Connectivity

Spartan 7 FPGAs support multiple high-speed connectivity standards that enable fast data transfer and low-latency communication. Integrated PCI Express Gen2 support allows data transfer rates of up to 5 gigabytes per second, which is ideal for applications such as data acquisition, image and video processing, and network acceleration. Gigabit Ethernet support enables reliable one-gigabit-per-second networking for industrial automation, surveillance, and medical systems, while USB 2.0 connectivity provides up to 480 megabits per second for peripheral communication, multimedia streaming, and system interfacing.

Applications

Spartan 7 FPGAs are used across a wide range of industries where performance, efficiency, and flexibility are critical.

Data Center Acceleration

In data center environments, Spartan 7 FPGAs can accelerate workloads such as encryption, compression, and database processing. By offloading compute-intensive tasks to dedicated hardware, these devices improve throughput while reducing overall energy consumption. Their high processing capability combined with low power usage makes Spartan 7 FPGAs suitable for networking, storage, and cloud computing systems that require both speed and efficiency.

Industrial Automation

Spartan 7 FPGAs play a key role in industrial automation applications, including robotics, motion control, and vision processing. In robotic systems, they enable precise and repeatable control of robotic arms and grippers, supporting high-accuracy manufacturing processes. In motion control systems, Spartan 7 devices manage motors and mechanical components with low latency, ensuring smooth and accurate movement. For vision processing, the FPGA can analyze data from cameras and sensors in real time, enabling automated inspection and quality control tasks while maintaining energy efficiency.

Scientific Research

Spartan 7 FPGAs are also well suited for scientific research applications such as high-performance computing, digital signal processing, and machine learning. In research environments that require large-scale simulations, modeling, and data analysis, Spartan 7 devices provide high processing throughput with efficient power usage. For digital signal processing applications, including image analysis and communication systems research, their low latency and high computational capacity enable reliable real-time performance.

Design Resources

Xilinx, now part of top FPGA manufacturer AMD, provides a comprehensive set of development resources that simplify Spartan 7 FPGA design and deployment.

Learn More: AMD/Xilinx

Development Boards

A range of development boards is available to help designers prototype and evaluate Spartan 7 designs. Boards such as the Arty S7, Basys 3, and Nexys 4 DDR provide accessible platforms for both learning and professional development. These boards include onboard memory, connectivity interfaces, and peripheral components that allow engineers to move quickly from concept to functional prototype.

Reference Designs

Xilinx offers pre-verified reference designs for Spartan 7 FPGAs that demonstrate how to implement key features such as PCIe Gen2, Ethernet, and DDR3 memory interfaces. These reference designs provide practical starting points for custom solutions and help engineers understand best practices for high-speed data transfer, networking, and memory integration.

Software Tools

Spartan 7 development is supported by the AMD Vivado Design Suite, which provides tools for design entry, simulation, synthesis, and hardware implementation.

Learn More: AMD Vivado

Vivado supports VHDL, Verilog, and SystemVerilog, allowing designers to work in their preferred language. The toolchain optimizes placement and routing automatically to achieve efficient performance and power usage. In addition, Xilinx offers a library of reusable IP cores that implement common functions such as image processing, audio processing, and data encryption, helping reduce development time and accelerate product deployment.

Why Spartan 7 FPGAs Are a Game-Changer for Custom Embedded Designs

The Spartan 7 FPGA series delivers a reliable balance of high performance, low power consumption, and robust connectivity for modern embedded and industrial systems. Their optimized architecture allows engineers to tailor designs to specific application requirements while maintaining a compact footprint and efficient operation. Supported by a mature ecosystem of development tools, reference designs, and reusable IP cores from AMD Xilinx, Spartan 7 FPGAs enable faster development cycles and smoother deployment without compromising performance or reliability.
