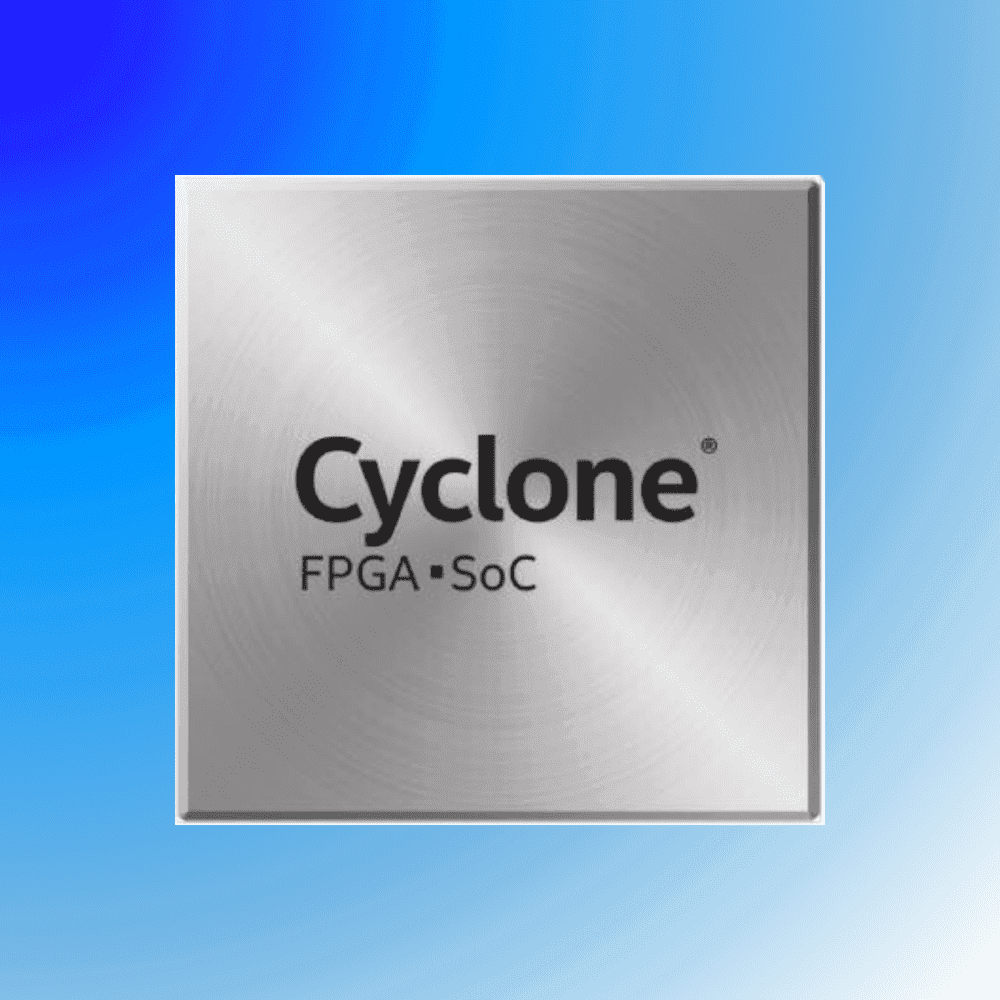

Cyclone FPGAs, developed by Intel, are a family of programmable logic devices known for their versatility, cost-effectiveness, and flexibility. These FPGAs are widely used in various industries for a range of applications, including digital signal processing, communication systems, industrial automation, and more.
These FPGAs allow designers to implement customized digital circuits by configuring the FPGA’s internal resources, such as lookup tables (LUTs), flip-flops, and memory blocks, to create the desired functionality. The reconfigurable nature of Cyclone FPGAs allows for rapid prototyping, design iteration, and adaptation to changing requirements.
Altera Cyclone FPGAs stand out in the market due to their cost-effectiveness. They provide an attractive option for designers and developers who require the benefits of FPGA technology without the need for the highest performance or largest logic capacity. The affordability of Cyclone FPGAs makes them accessible to a broader range of projects and budgets, opening up opportunities for small to mid-sized businesses and startups to leverage the power of FPGA technology. By offering a balance between performance, flexibility, and cost, Cyclone FPGAs enable designers to achieve their design goals while optimizing their budgetary considerations. This makes them an appealing choice for applications where cost efficiency is a critical factor, without compromising the design’s overall capabilities and functionality.
Features and Capabilities of Cyclone FPGAs
Cyclone FPGAs offer several key features and capabilities that make them suitable for a wide range of applications:
Logic Capacity: Cyclone FPGAs offer a wide range of models with varying logic capacity options, allowing designers to choose the right device for their specific design requirements. Whether a small-scale project or a large-scale implementation, Cyclone FPGAs can accommodate designs of different complexities. With logic capacities ranging from thousands to millions of logic elements, designers can confidently develop their designs without worrying about running out of resources. This scalability ensures that Cyclone FPGAs can handle a broad spectrum of applications, from simple control systems to highly intricate digital designs.
Versatile I/O Interfaces: Cyclone FPGAs provide a diverse set of I/O interfaces, catering to the connectivity needs of different applications. The availability of various I/O standards, such as LVCMOS, LVTTL, LVDS, PCI Express, and Ethernet, allows for seamless integration with a wide range of external systems and devices. Designers can easily interface Cyclone FPGAs with sensors, actuators, memory modules, communication interfaces, and other peripheral devices, enabling efficient data exchange and communication. This versatility in I/O interfaces ensures compatibility and interoperability with existing systems and simplifies the integration process for designers, streamlining the overall design workflow.
Reconfigurability: Cyclone FPGAs are highly regarded for their reconfigurable nature, which sets them apart from fixed-function ASICs (Application-Specific Integrated Circuits) or processors. Designers can modify and reprogram the FPGA multiple times, allowing for rapid design iterations and system upgrades. This reconfigurability feature enables designers to adapt to evolving project requirements, implement new features, or make adjustments without the need for hardware redesigns. The ability to reconfigure Cyclone FPGAs significantly reduces time-to-market and provides a cost-effective solution, eliminating the need for manufacturing and testing new hardware iterations.
Flexible Design Options: Cyclone FPGAs offer designers the flexibility to choose between different design entry methods. Whether they prefer a schematic-based approach, where the circuit is designed using graphical symbols and connections, or an HDL-based approach, involving coding the design using languages such as VHDL or Verilog, Cyclone FPGAs can accommodate both methodologies. This flexibility allows designers to work with their preferred design approach, leveraging their expertise and familiarity with specific design methodologies. By providing multiple design entry options, Cyclone FPGAs cater to designers’ diverse needs and preferences, ensuring a comfortable and efficient design experience.
Simulation and Verification:Intel Quartus Prime, the design software suite for Cyclone FPGAs, offers comprehensive simulation and verification tools. These tools enable designers to perform rigorous testing and verification of their designs before moving to the implementation stage. By simulating the behavior of the design under various scenarios, designers can identify and rectify potential issues, validate the functionality of their design, and optimize its performance. This simulation and verification capability reduces the risk of errors and ensures the correctness of the design before committing it to hardware, saving time and resources in the development process.
Power Management: Cyclone FPGAs provide efficient power management features that help optimize design power consumption. Power management is crucial in applications where energy efficiency is a priority or when operating in power-constrained environments. Cyclone FPGAs offer various power-saving modes, such as clock gating, power gating, and dynamic power scaling, allowing designers to tailor the power consumption based on the operational requirements of their designs. By effectively managing power usage, designers can extend the battery life of portable devices, reduce heat dissipation, and lower overall power consumption, contributing to energy-efficient and environmentally-friendly designs.
Design Considerations for Cyclone FPGAs
Designing with Cyclone FPGAs requires careful consideration of various factors to ensure successful implementation and optimal performance. Here are some important design considerations:
System Specification and Requirements: Clear and comprehensive system specifications and requirements serve as the foundation for successful FPGA design. Defining the system’s objectives, desired functionality, and performance targets is crucial in guiding the design process. This involves understanding the specific inputs and outputs required by the system and any constraints or limitations imposed by the application, such as size, power consumption, or operating environment. By clearly defining the system specifications, designers can establish a clear design direction, effectively communicate requirements to stakeholders, and ensure that the resulting FPGA design meets the desired objectives.
Furthermore, system requirements encompass more than just the functional aspects. They may also include considerations for reliability, security, and scalability. For example, strict reliability and fault-tolerance requirements may need to be met in safety-critical applications. Additionally, considering future scalability and the ability to accommodate potential enhancements or expansions in the system can help ensure the longevity and adaptability of the FPGA design. By carefully defining and documenting system specifications and requirements, designers can effectively guide the design process, set clear goals, and achieve successful implementation of the Cyclone FPGA-based system.
FPGA Selection Criteria: Selecting the appropriate Cyclone FPGA model is a critical decision directly impacting the project’s success. Various factors need to be considered to align the FPGA features with the specific project requirements. Logic capacity is a key consideration, as it determines the number of logic elements available for implementing the desired functionality. Projects with complex designs may require FPGAs with higher logic capacities, while smaller-scale projects can make do with FPGAs with lower logic capacities.
I/O capabilities are another crucial factor to consider. Assessing the required I/O standards, such as LVCMOS, LVDS, or differential signaling, ensures compatibility and seamless integration with the external system or peripheral devices. Speed requirements, such as data transfer rates or clock frequencies, must be evaluated to select an FPGA model that can meet the performance targets of the system. Power consumption is an essential consideration, particularly for battery-powered or low-power applications, as selecting an FPGA with efficient power management features can help extend battery life and optimize energy usage.
Cost and availability also play a role in the FPGA selection process. Evaluating the project budget and considering the cost-effectiveness of different FPGA models helps make informed decisions. Additionally, assessing the availability and long-term support of the chosen FPGA model is crucial to ensure a stable supply chain and avoid any potential obsolescence issues. By carefully evaluating these selection criteria, designers can choose the most suitable Cyclone FPGA model that aligns with the project’s requirements, balancing performance, power consumption, cost, and availability.
Power Management: Efficient power management is a critical aspect of FPGA design, particularly in applications where power consumption is a concern. Cyclone FPGAs offer a range of power management features and techniques to minimize power consumption while maintaining reliable operation. One commonly used technique is clock gating, which selectively disables clock signals to unused or idle portions of the design, reducing dynamic power consumption. Another technique is power domains, where different sections of the FPGA can be powered on or off independently, allowing designers to selectively power only the required portions of the design at any given time. This approach helps reduce overall power consumption and extends battery life in portable and energy-constrained applications.
Voltage regulation is also an important aspect of power management in Cyclone FPGAs. These FPGAs support dynamic voltage scaling, enabling the adjustment of operating voltages based on the performance requirements of the design. By dynamically scaling the voltage supply, designers can optimize power consumption without compromising performance. Additionally, Cyclone FPGAs provide dynamic power management techniques, such as adaptive power supply control and power gating, which further contribute to power savings by selectively enabling or disabling power to specific parts of the design based on the operational requirements.
Effective power management not only reduces power consumption but also helps mitigate issues related to heat dissipation. Minimizing power consumption can reduce the need for excessive cooling mechanisms, resulting in more compact and cost-effective system designs. Cyclone FPGAs offer a comprehensive suite of power management features that empower designers to optimize power consumption and enhance the overall energy efficiency of their designs.
Pin Planning and I/O Placement: Proper pin planning and I/O placement are vital for successfully integrating the FPGA design with the external system. Pin planning involves allocating and assigning I/O pins to specific functions based on the connectivity and functionality requirements of the design. Careful consideration should be given to the pin assignments to ensure proper communication and data exchange with external devices, such as sensors, displays, or communication interfaces.
Signal integrity is a crucial aspect of pin planning and I/O placement. Designers can minimize signal degradation, noise, and crosstalk by carefully considering signal integrity requirements. Techniques such as proper termination, impedance matching, and signal buffering can be employed to maintain signal quality and reliability.
Conflict and contention among I/O pins should be avoided to prevent data corruption or functional issues. Cyclone FPGAs offer dedicated resources and advanced features, such as high-speed I/O circuitry and differential signaling support, which enable designers to achieve optimal signal routing and mitigate potential signal integrity challenges.
To simplify the pin planning and I/O placement process, Cyclone FPGAs provide design software tools that assist designers in visualizing and optimizing the pin assignments. These tools offer features such as interactive pin assignment editors, automatic I/O assignment generators, and constraint-driven placement capabilities. By leveraging these tools and adhering to best practices in pin planning and I/O placement, designers can ensure seamless integration and effective communication between the FPGA and the external system components.
Timing Constraints and Analysis: Meeting timing requirements is crucial for ensuring the reliable operation of Cyclone FPGA designs. Cyclone FPGAs offer advanced features and resources to manage timing constraints effectively. Clock Control Blocks (CCBs) provide dedicated routing resources and clock distribution networks to ensure precise clock signal delivery throughout the design. Phase-Locked Loops (PLLs) enable designers to generate and manage multiple clock domains, allowing for the synchronous operation of different parts of the design with independent clock frequencies.
Timing analysis tools provided by the Quartus Prime software facilitate identifying and resolving any timing violations in the design. These tools perform comprehensive static timing analysis, considering factors such as logic delays, interconnect delays, and clock skew. By analyzing the timing paths within the design, designers can identify potential violations, such as setup or hold time violations, and take corrective measures to address them. These measures may include adjusting clock frequencies, optimizing signal routing, or implementing pipeline registers to meet timing requirements.
In addition to static timing analysis, Cyclone FPGAs also support dynamic circuitry that allows for timing closure during runtime. This feature, known as dynamic phase adjustment, enables designers to fine-tune the timing of critical paths in real-time, compensating for variations in operating conditions, such as temperature and voltage fluctuations. By dynamically adjusting the phase relationship between clock signals, designers can optimize performance and ensure proper synchronization within the design.
Successful timing closure ensures correct operation and contributes to overall system performance. By meeting timing requirements, designers can achieve the desired operating frequencies, reduce latency, and maximize the throughput of the FPGA design. The combination of advanced timing management features and powerful timing analysis tools provided by Cyclone FPGAs and the Quartus Prime software empowers designers to achieve precise control over timing constraints and optimize the performance of their designs.
Debugging and Testing Techniques: Debugging and testing are crucial stages in the FPGA development process to identify and resolve any issues or errors that may arise. Cyclone FPGAs offer various features and tools to facilitate effective debugging and testing of the design.
In-system debugging is a powerful feature provided by Cyclone FPGAs, allowing designers to monitor and analyze internal signals and states of the design while it is running. This capability enables real-time debugging, where designers can observe the behavior of the design, set breakpoints, and step through the code or circuitry to identify and diagnose potential issues. In-system debugging greatly simplifies the debugging process, reduces the need for additional external monitoring equipment, and accelerates the development cycle.
Joint Test Action Group (JTAG) interfaces are another essential component of Cyclone FPGAs that support advanced testing techniques. JTAG interfaces enable designers to perform boundary scan testing, which allows for testing individual pins and interconnects within the FPGA. This feature aids in identifying potential connectivity issues, opens, or shorts in the design, enhancing the overall reliability and manufacturability of the FPGA-based system.
Furthermore, the Quartus Prime software provides comprehensive simulation and verification tools that allow designers to test and validate their FPGA designs thoroughly before implementation. These simulation tools enable designers to create test benches, apply test vectors, and verify the functionality and performance of the design in a simulated environment. By conducting rigorous simulations, designers can catch and correct errors, validate the design’s behavior under different scenarios, and optimize the performance of the FPGA design.
The combination of in-system debugging, JTAG interfaces, and simulation tools equips designers with the necessary resources to effectively debug and test their Cyclone FPGA designs. These techniques contribute to the reliability, functionality, and overall quality of the FPGA-based systems, ensuring that they meet the desired specifications and requirements.
Real-World Applications of Cyclone FPGAs
Cyclone FPGAs find applications in various industries and sectors, offering versatile solutions for a wide range of use cases. Some notable applications include:
Video and Image Processing: In real-time video decoding, encoding, image filtering, and object recognition applications. They enable the efficient processing of multimedia data, making them suitable for video surveillance systems, digital signage, medical imaging devices, and multimedia communication.
Industrial Automation: Cyclone FPGAs play a vital role in industrial automation applications. They can be used for control systems, process monitoring, data acquisition, and communication interfaces for machinery and equipment. Cyclone FPGAs enable real-time processing and communication, enhancing industrial automation systems’ efficiency, accuracy, and responsiveness.
Communication and Networking: They are also widely employed in communication and networking infrastructure. They enable the implementation of routers, switches, baseband processing, network acceleration, and protocol handling. The reconfigurable nature of Cyclone FPGAs allows for quick adaptation to changing networking standards and protocols.
Automotive Electronics: Utilized in the automotive industry for a variety of applications. These include sensor fusion for advanced driver-assistance systems (ADAS), in-vehicle networking, infotainment systems, control systems, and real-time data processing. Cyclone FPGAs provide the necessary flexibility, performance, and reliability required in the demanding automotive environment.
Aerospace and Defense: Play a crucial role in aerospace and defense applications. They are utilized in radar systems, avionics, satellite communication, encryption, electronic warfare, and navigation systems. Cyclone FPGAs offer the necessary processing power, reconfigurability, and ruggedness required in harsh environments.
High-Frequency Trading: Cyclone FPGAs’ low latency and high-performance capabilities make them a preferred choice for high-frequency trading (HFT) systems in the financial industry. Their ability to process and analyze vast amounts of real-time data enables traders to make quick and informed decisions, gaining a competitive edge.
Medical and Healthcare: In medical imaging devices, patient monitoring systems, diagnostic equipment, and other healthcare applications. Their real-time processing capabilities, reliability, and accuracy are vital for applications requiring high-speed data acquisition, image processing, and signal analysis.
Internet of Things (IoT): Cyclone FPGAs play a significant role in IoT applications. They provide flexible connectivity options, sensor integration, and real-time processing capabilities at the edge. Cyclone FPGAs enable efficient data acquisition, analysis, and decision-making in IoT applications, supporting diverse use cases such as smart homes, industrial IoT, environmental monitoring, wearable devices, and intelligent edge computing. Their reprogrammable nature allows for customization and adaptation to various IoT protocols and communication standards.
Comparison with Other FPGA Families
In comparison to other FPGA families, Cyclone FPGAs offer a cost-effective solution with good performance and flexibility. Let’s briefly compare Cyclone FPGAs with other FPGA families:
Stratix FPGAs: Stratix FPGAs, also developed by Intel, are higher-end FPGAs that offer superior performance, larger logic capacity, and advanced features. They are designed for applications with demanding performance requirements and complex algorithms. Stratix FPGAs are suitable for high-speed data processing, high-performance computing, and advanced signal processing applications.
Arria FPGAs: Arria FPGAs, also developed by Intel, strike a balance between Cyclone and Stratix FPGAs. They offer good performance and logic capacity at a more affordable price point compared to Stratix FPGAs. Arria FPGAs are suitable for a wide range of applications, including embedded systems, digital signal processing, image processing, and communication systems.
Max 10 FPGAs: Max 10 FPGAs, also developed by Intel, target low-cost and low-power applications. They provide a cost-effective solution for designs with lower logic capacity requirements. Max 10 FPGAs offer integration of analog features such as ADCs and DACs, making them suitable for applications that require mixed-signal capabilities.
While Cyclone FPGAs may have lower logic capacity and fewer advanced features than higher-end FPGA families like Stratix, but they still offer a compelling solution for many applications. Cyclone FPGAs provide a balance between cost, performance, and flexibility, making them suitable for a wide range of designs, from small-scale projects to mid-range applications.
Cyclone FPGAs, developed by Intel, are versatile programmable logic devices widely used in various industries and applications. Their features, including logic capacity, versatile I/O interfaces, reconfigurability, and flexible design options, make them suitable for diverse projects. Designers must consider factors such as system specifications, FPGA selection criteria, power management, pin planning, timing constraints, and debugging techniques to ensure successful implementation. Cyclone FPGAs find applications in video and image processing, industrial automation, communication and networking, automotive electronics, aerospace and defense, high-frequency trading, medical and healthcare, and IoT. Compared to other FPGA families, Cyclone FPGAs offer a cost-effective solution without compromising on performance and flexibility. By leveraging the capabilities of Cyclone FPGAs, designers can develop innovative and customized solutions to meet their project requirements effectively.
In addition to their versatility and cost-effectiveness, Cyclone FPGAs also provide robust support and resources for developers. Intel Quartus Prime, the design software for Cyclone FPGAs, offers a comprehensive suite of tools and features to aid in the development process. From design entry and simulation to synthesis, placement, and routing, Quartus Prime provides a seamless and intuitive environment for FPGA design. The software includes advanced debugging and verification capabilities, allowing designers to identify and resolve issues efficiently. Additionally, Intel provides extensive documentation, application notes, and a vibrant online community where designers can access resources, share knowledge, and seek assistance from fellow developers. This comprehensive support ecosystem ensures that designers have the necessary resources and guidance to maximize the potential of Cyclone FPGAs in their projects.
